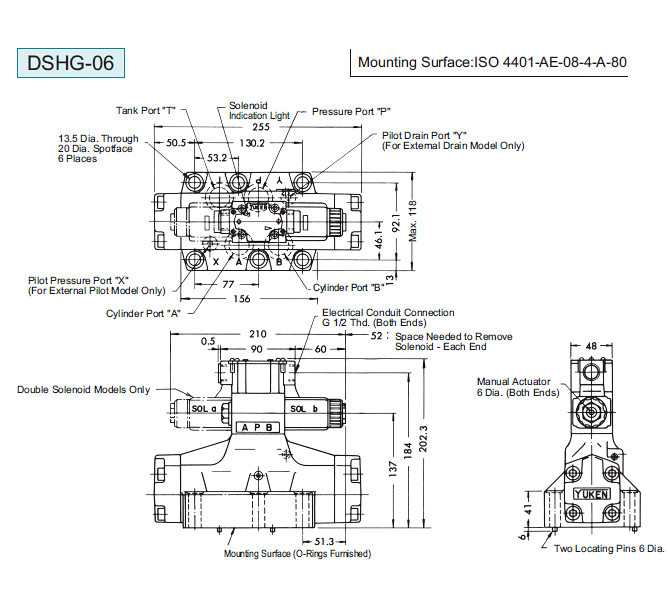

DSHG Series
These valves are composed of a solenoid operated pilot valve and a pilot operated slave valve. When a solenoid is energized the pilot valve directs the flow to move the spool of the slave valve, thus changing the derection of flow in the hydraulic circuit.

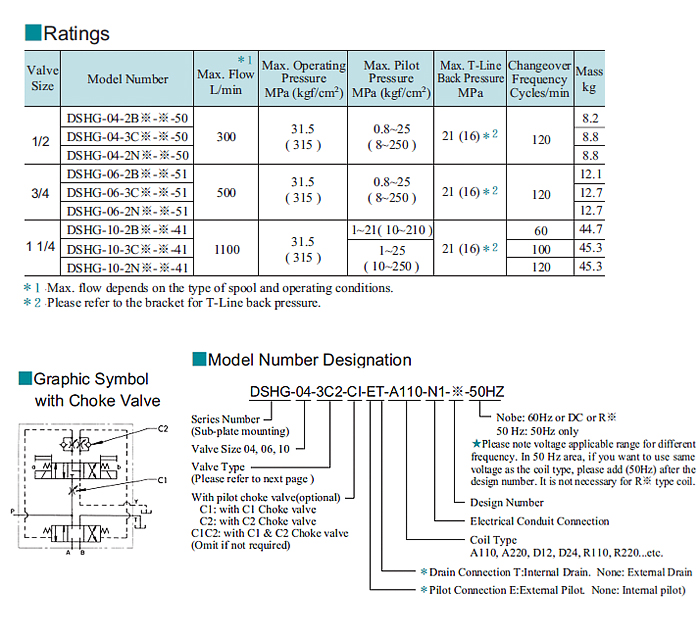

High Pressure High Flow

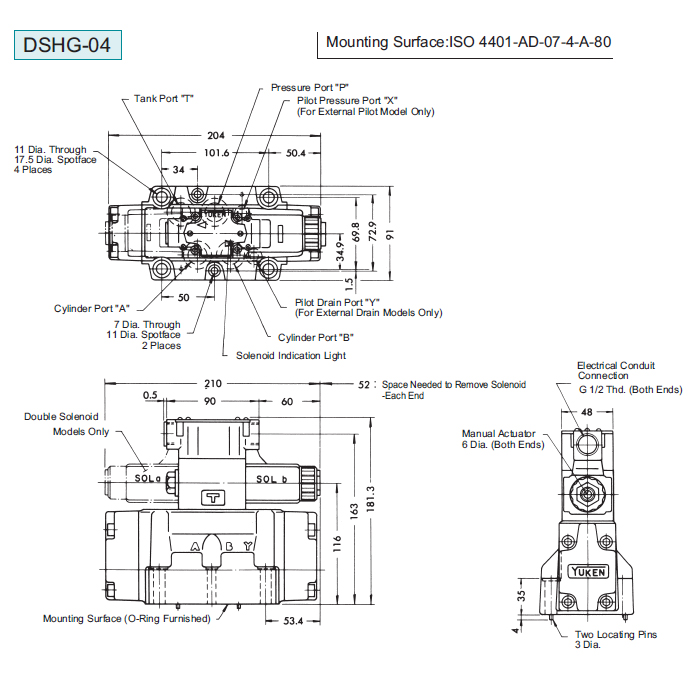

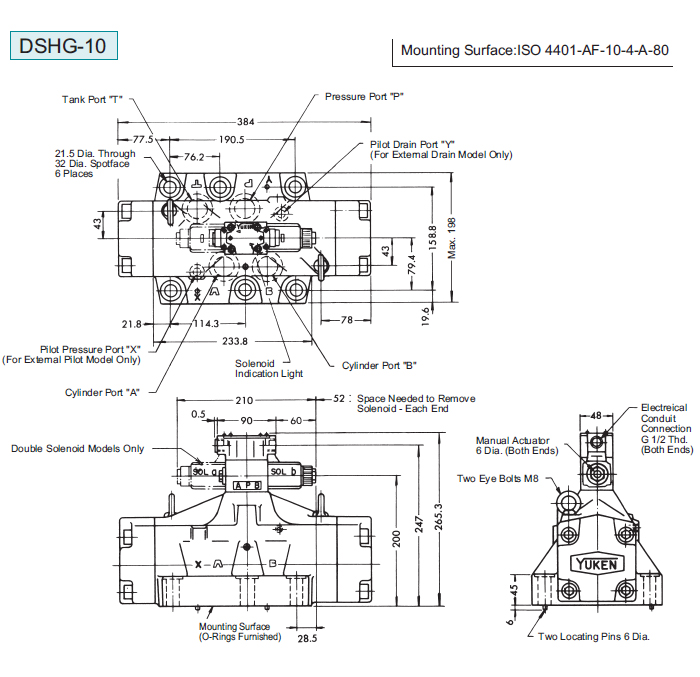

High pressure(315kgf/cm2) along with high flow means compact system design. (e.g.”04″ size valve-300L/min, “06”size valve-500L/min, “10” size valve-1100L/min.)

Lowr Pressure Drop
System energy saving increased as pressure drop of each valve has been greatly reduced.
