2500 LB Swing Check Valve,WCB Body,8 Inch,Butt Weld End



Model:STV-H64Y-2500LB-8″-WCB

Butt Weld End Swing Check Valve for Class1500 ~ 2500Lb, various working pipeline temperature of -29 to 570 DEG C for petroleum and chemical industry, power plant and so on.

STV Valve Technology Group Co., Ltd is a professional leader China WCB Swing Check Valve,BS 1868 Swing Check Valve,API 6D Swing Check Valve,8 IN Swing Check Valve,Class 2500 Swing Check Valve ,Butt Welded Swing Check Valve,Power Station Swing Check Valve,Power Station Swing Check Valve Manufacturer with high quality and competitive price.

Please contact our sales@stvvalve.com for other materials and details.

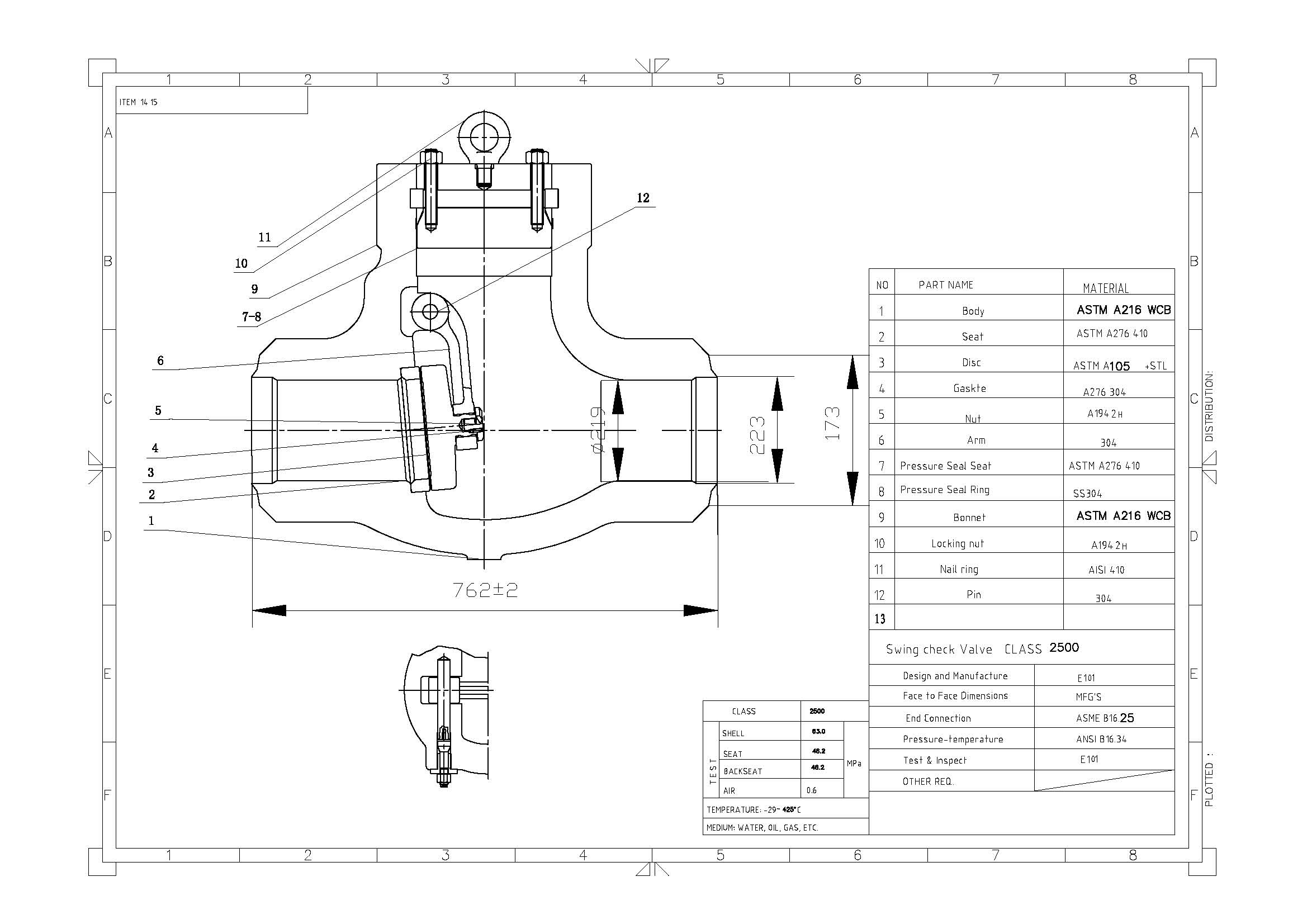

Date Sheet:2500 LB Swing Check Valve,WCB Body,8 Inch,Butt Weld End

<form class="cart" action="https://stvvalves.com/product/1500lb-pressure-seal-gate-valve-wc6-body-dn250-flange-end/" enctype="multipart/form-data" method="post">



</form></div> <form class="cart" action="https://stvvalves.com/product/2500-lb-swing-check-valve-wcb-body-8-inch-butt-weld-end/" enctype="multipart/form-data" method="post">


<button class="button alt addquotelistbutton_prodpage product_type_simple" type="button" data-product_id="5112" data-product_sku="" data-quantity="1">Add to Quote</button></span>



</form>
Categories: Cast Steel Check Valve, CHECK VALVE Tags: 8 IN Swing Check Valve, API 6D Swing Check Valve, BS 1868 Swing Check Valve, Butt Welded Swing Check Valve, Class 2500 Swing Check Valve, Power Station Swing Check Valve, WCB Swing Check Valve
  • Description

Description

Design and Manufacture：E101,BS1868, API594, API6D, ASME B16.34, API603

Inspection and Test：API598,API600 or API 6D
ASME B16.5(for NPS≤24,ASME B 16.47 series B,API 605,ASME B16.47 A Series,MSS SP-44(for NPS＞24)

BW end Dimension：ASME B16.25

Face to Face and End to End：ASME B16.10

Pressure-temperature ratings：ASME B16.34

Product Range

Body material: carbon steel, stainless steel, alloy steel

Nominal diameter:2″~36″(DN50~DN900)

End Connection: RF,RTJ, BW

Pressure range: Class150~2500(PN16~PN420)

Working temperature:-29℃~+560℃

Operation: Hand wheel,Gear,Electric Actuator,etc.

WCB Swing Check Valve,BS 1868 Swing Check Valve,API 6D Swing Check Valve,8 IN Swing Check Valve,Class 2500 Swing Check Valve ,Butt Welded Swing Check Valve,Power Station Swing Check Valve,Power Station Swing Check Valve Manufacturer
