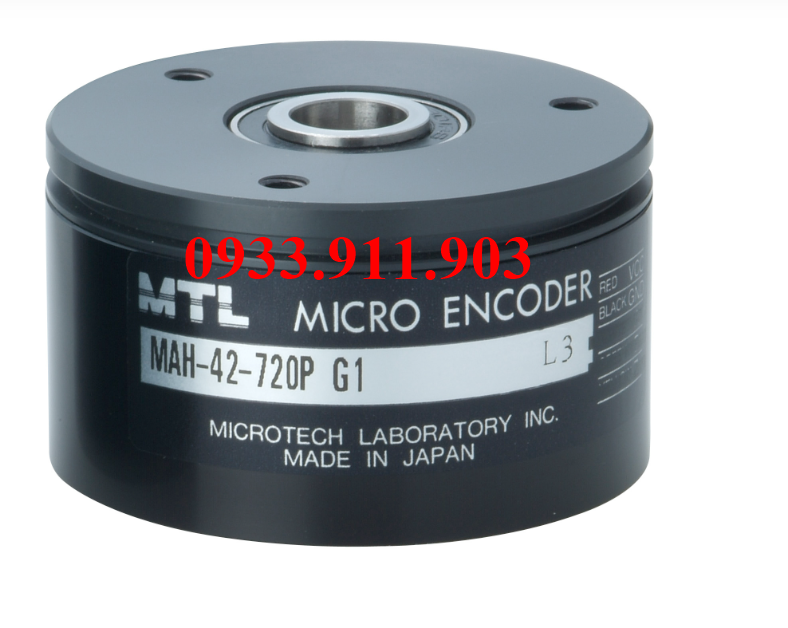

Model: MAH-42-2048G5
Hãng: MTL Encoder
ĐẶC TÍNH KỸ THUẬT:
- Điện áp nguồn: DC5V ±5％
- Dòng điện: 100mA or less
- Nhiệt độ: 20℃～80℃
- Vòng quay tối đa: 6000r/min
Hotline: 0933.911.903
Mail: thietbicongnghiepltt@gmail.com
Liên hệ với chúng tôi để có thêm thông tin và giá tốt nhất!
| Specifications | ||
| Supply voltage | DC5V±5％ | |
| Current consumption | 100mA or less（ under no load） | |
| Resolution | 65,536（16bit）, 131,072（17bit）262, 14（18bit）, 524, 28（19bit） | |
| Allowable rotation | 6000r/min | |
| Allowable load of shaft (electrical) | Radial | 9.8N（1kgf） |
| Thrust | 4.9N（0.5kgf） | |
| Working temperature/ humidity | －10℃～70℃／RH35％～90％ no dewing | |
| Storage temperature | －20℃～80℃ | |
| Vibration resistance | Durability 55Hz, double amplitude 1.5mm 2 hours each in X, Y, and Z directions | |
| Impact resistance | Durability 500m/s（2 about 50G） 3 times each in X, Y, and Z directions | |
| Cable | Outside diameter φ4.2 7-core vinyl wire Insulated shield cable AWG28（length 1m） | |
| Mass | 30g（excluding cable） | |
| Decoder Specifications | |
| Supply voltage | DC5V ±5％ |
| Current consumption | 60mA or less（160mA or less including encoder） |
| Parallel data update cycle | 60μS（ 16.7kHz） |
| Output circuit | NPN open collector output（when using parallel output） |
| Output capacity | Sink current 20mA or less Load voltage 35V or less Residual voltage 0.4 or less |
| Logic | Negative logic（H＝0, L＝1） |
| Connection | Power supply and parallel signal output by P=2.54 header pins（ see diagram below） |
