Linear Ball Slides (LS)

The Linear Ball Slide is a highly corrosion resistant slide unit that has an extremely low friction coefficient because stainless steel balls roll on four stainless steel needle roller raceways that are hardened and ground. Its components are all made of stainless steel, which is highly corrosion resistant. Furthermore, since its inertia is small, the slide system is highly responsive to high speed. By simply securing the Linear Ball Slide on the mounting surface, the user can easily achieve a linear guide mechanism.

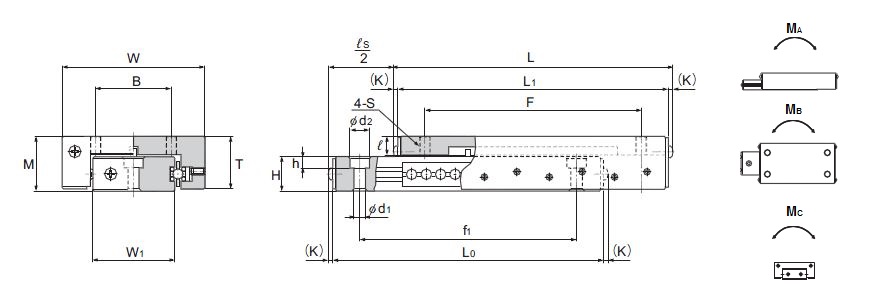

Model No.	Slider dimensions				Base dimensions	Basic load rating		Detail specifications	CAD		Dimensional drawing
	Max. Stroke ls	Height M ±0.25	Width W ±0.25	Length L	Width W1	Dynamic rating C	Static rating C0		2D (DXF)	3D
	mm	mm	mm	mm	mm	N	N
LS 827	13	8	14.2	28.7	6.2	39.2	68.6
LS 852	25	8	14.2	53.7	6.2	68.6	118
LS 877	50	8	14.2	78.7	6.2	98	167
LS 1027	13	10	19	28.7	9.6	58.8	108
LS 1052	25	10	19	53.7	9.6	108	186
LS 1077	50	10	19	78.7	9.6	157	275
